MANIBOX GR 500 kg - model with galvanized frame
MANIBOX GR 500 kg - model with galvanized frame

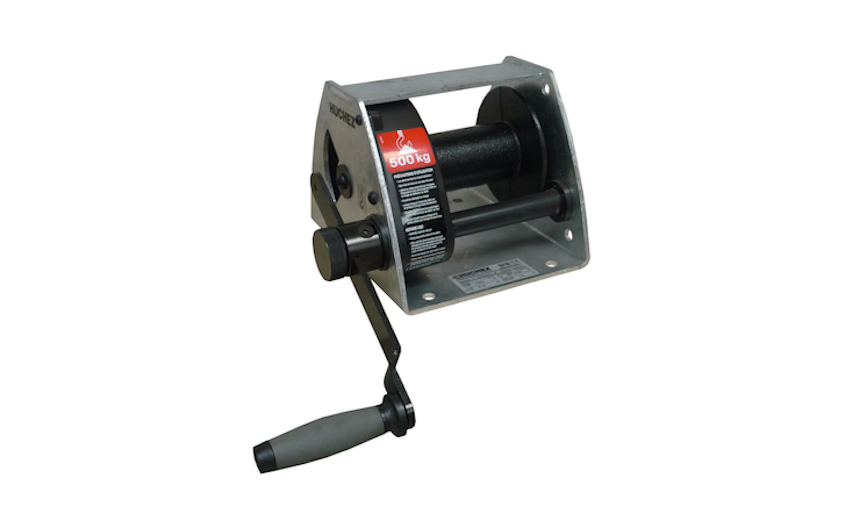

Hand spurgear winch 500 kg, model with galvanized frame
Use:
- Lifting or pulling/hauling operation
- Wall-mounted or flat
- Industry
- Auditoriums, theatre scenery
- Water treatment, water dams
- Sports rooms
- Hanging chandeliers...
Comply with Machines Directive 2006/42/EC. Developped and manufactured in accordance with standard NF E N 13157.
- Mechanical parts machined and protected by cataphoresis.
- Stainless steel ratchet spring.
- Straight-cut gears.
- Automatic brake made of composite materials.
- Disengageable drum, no load only, associated with a failsafe system in the rope wind direction (patented).
- Reduction system fully protected by a metal or plastic cover providing maximum safety.
- Ergonomic and removable crank handle with rotating grip. This crank arm can be adjusted to minimise effort according to the loads.
- Captive crank adjusting knob.
- Finition : galvanized frame.
Applications :

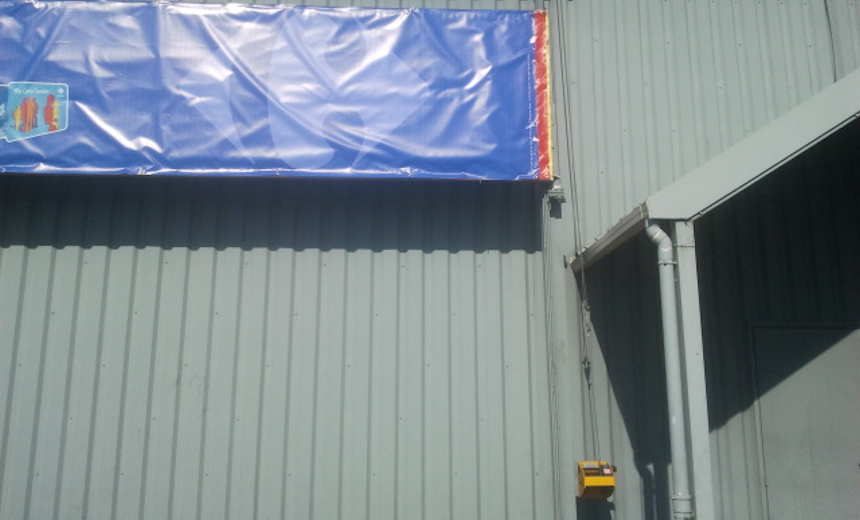

Lifting of billboard.
Lifting of a tar loading arm (ATEX area).
Lifting on a site.
Positioning load on a workstation.
Technical characteristics MANIBOX GR 500 kg - model with galvanized frame
| Capacity 1st layer kg | 750 |
| Capacity top layer kg | 500 |
| Nb of layers | 4 |
| Wire rope cap. 1st layer m | 3 |
| Max. rope capacity m | 18 |
| Wire rope Ø mm | 7 |
| Weight (without wire rope) kg | 15 |
| Lift per crank revolution mm | 31.5 |
| Max. hand force on crank kg | 19 |
HUCHEZ’s advice
Captive crank adjusting knob, adjustable crank handle for fast winding or otherwise, maximum capacity, release does not operate under load, highly reliable rope fastener not requiring any special tools.
