MANIBOX GR 300 kg - model with stainless steel frame

MANIBOX GR 300 kg - model with stainless steel frame

Hand spurgear winch 750 kg, model with stainless steel frame.

Use:

  • Lifting or pulling/hauling operation
  • Wall-mounted or flat
  • Industry
  • Auditoriums, theatre scenery
  • Water treatment, water dams
  • Sports rooms
  • Hanging chandeliers...

Comply with Machines Directive 2006/42/EC. Developped and manufactured in accordance with standard NF E N 13157.

  • Mechanical parts machined and protected by cataphoresis.
  • Stainless steel ratchet spring.
  • Straight-cut gears.
  • Automatic brake made of composite materials.
  • Disengageable drum, no load only, associated with a failsafe system in the rope wind direction (patented).
  • Reduction system fully protected by a metal or plastic cover providing maximum safety.
  • Ergonomic and removable crank handle with rotating grip. This crank arm can be adjusted to minimise effort according to the loads.
  • Captive crank adjusting knob.
  • Finition: stainless steel frame.

Applications :

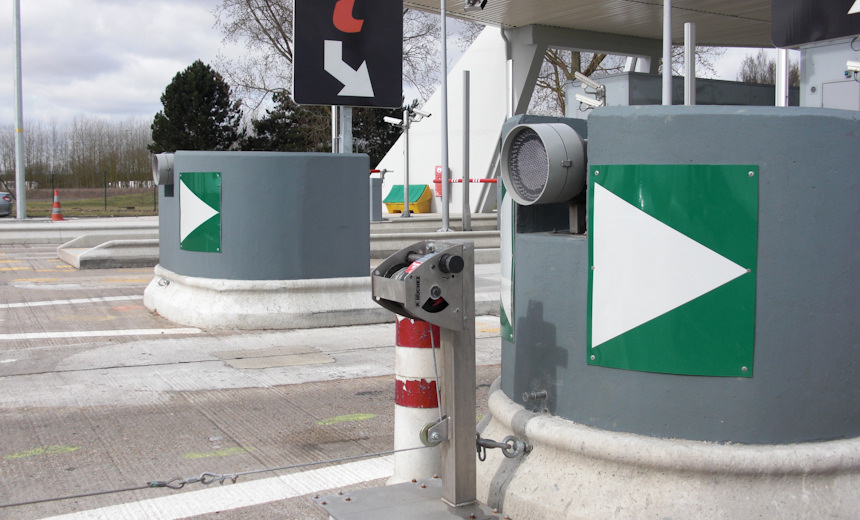

treuil manuel a engrenages manibox gr 8Separating motorway lanes.

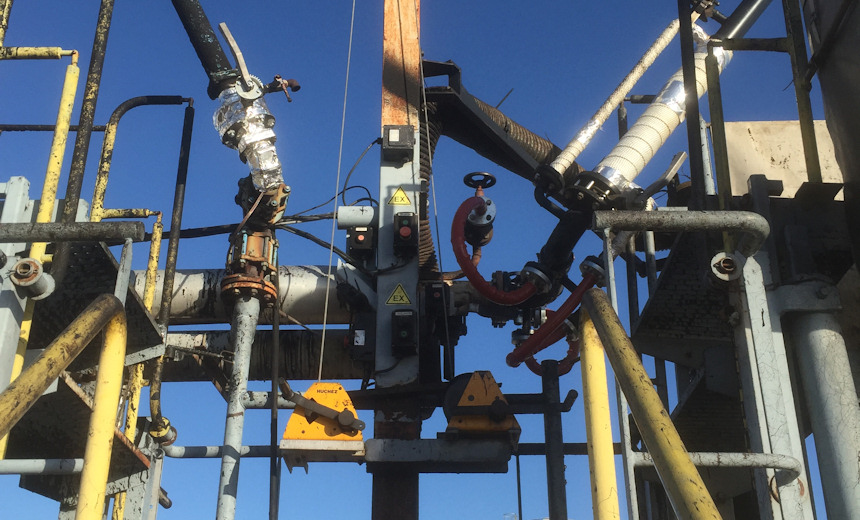

treuil manuel a engrenages manibox gr 10Lifting a tar loading arm (ATEX area).

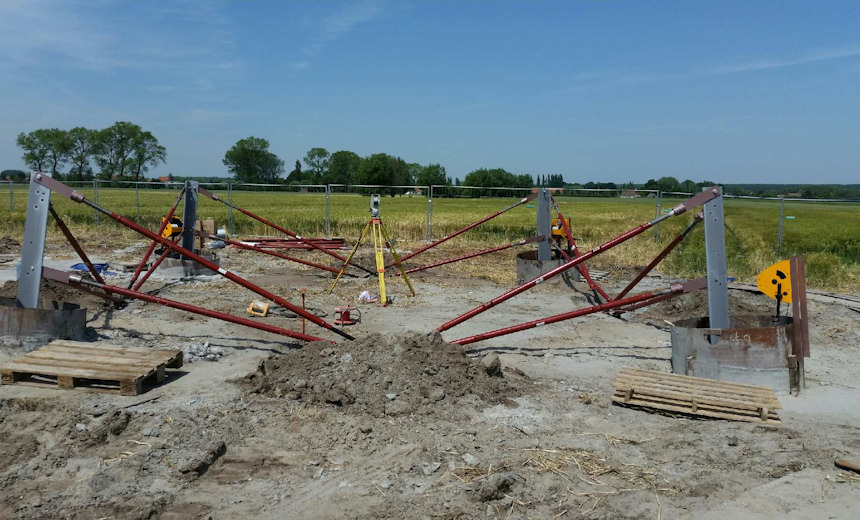

treuil manuel a engrenages manibox gr 12Lifting on a site.

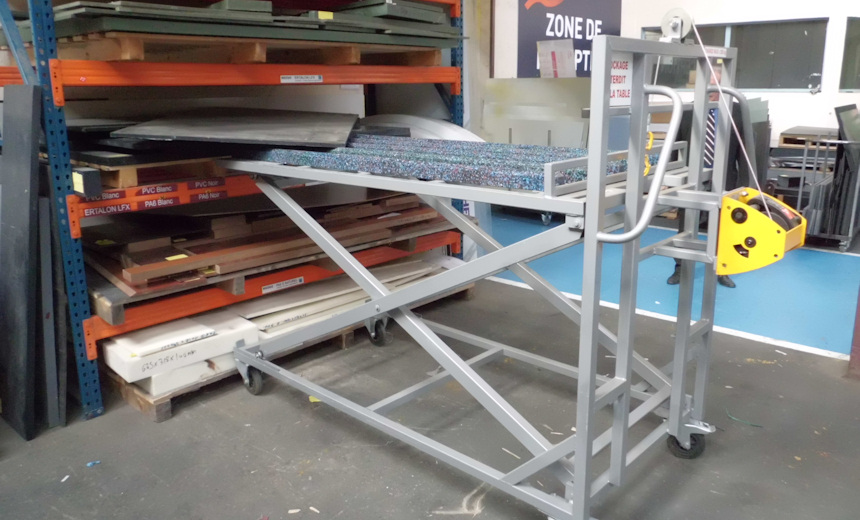

treuil manuel a engrenages manibox gr 13Positioning load on a workstation.



Technical characteristics MANIBOX GR 300 kg - model with stainless steel frame

Capacity 1st layer kg500
Capacity top layer kg300
Nb of layers6
Wire rope cap. 1st layer m4
Wire rope cap. top layer m38
Wire rope Ø mm5
Weight (without wire rope) kg15
Lift per crank revolution mm30.5
Max. hand force on crank kg12.5

HUCHEZ’s advice

Captive crank adjusting knob, adjustable crank handle for fast winding or otherwise, maximum capacity, release does not operate under load, highly reliable rope fastener not requiring any special tools.
