Reinforced safety

Some uses require a second brake so called "emergency brake": handling of fragile loads, hydraulic dams' inspections...

Our engineers are at your disposal to find the best solution to your needs.

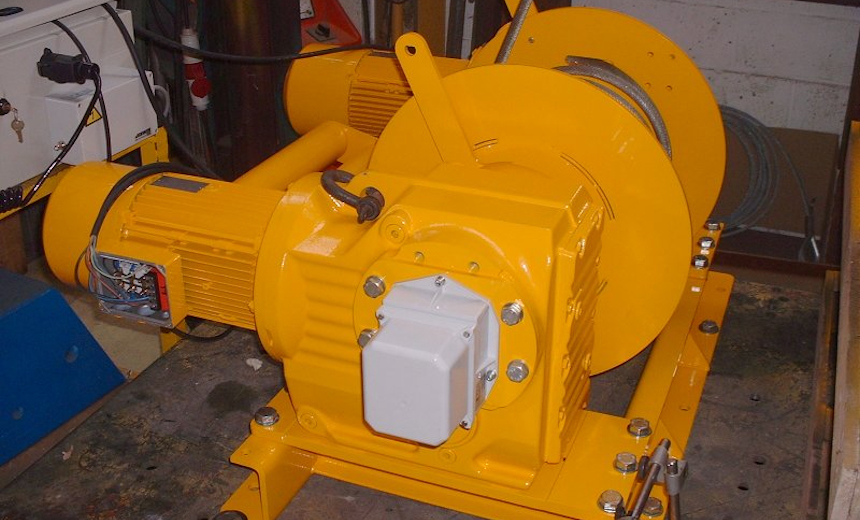

Double motor and double brake winch

Presentation

Reinforced safety lifting winch with double motor, double brake and drum with one wire rope exit. Equipped with a radio-control, this winch is used to inspect hydraulic dams.

Technical characteristics

Capacity 2 t, lifting speed: 2 m/mn.

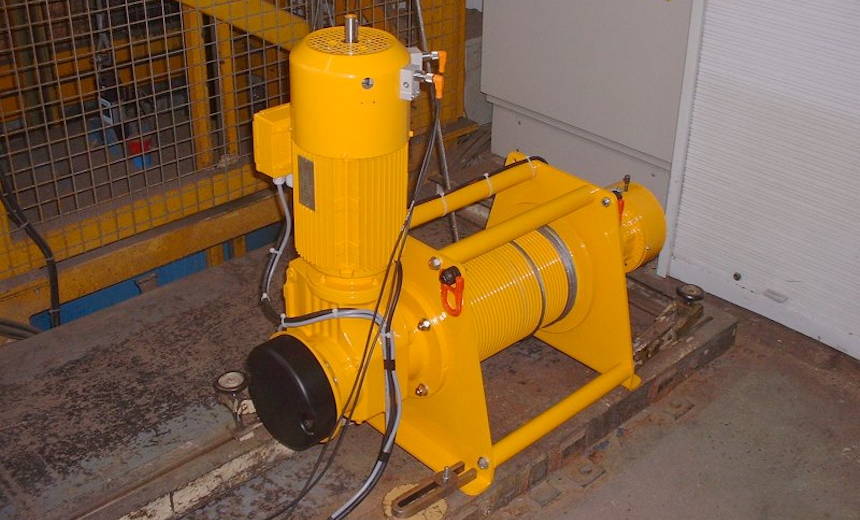

Winch with emergency brake

Presentation

Winch for nuclear industry.

Techncial characteristics

Manual control, emergency brake and decontaminable paint.

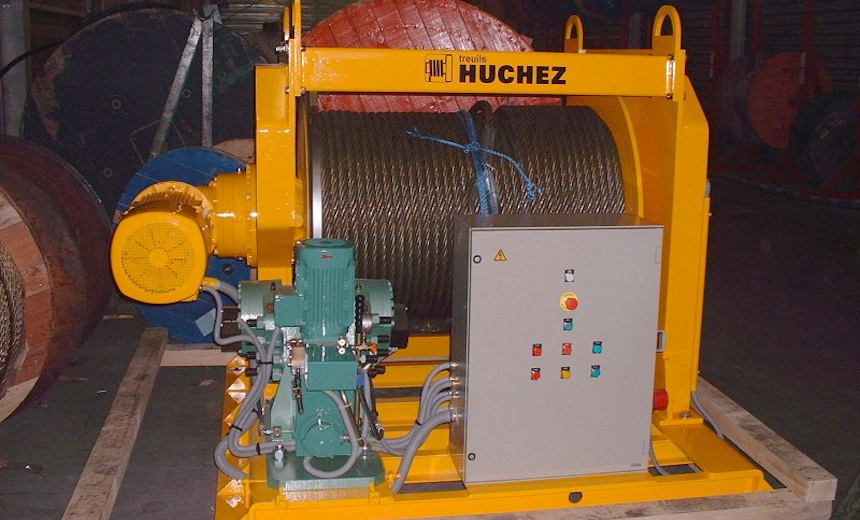

Double brake winch

Presentation

IP66 reinforced safety lifting winches with a double brake and a rope slack switch in a cement factory. Drum with two wire rope exits.

Technical characteristics (winch 1):

Capacity of the first winch: 5 t - lifting speed: 12 m/min.

Technical characteristics (winch 2):

Capacity of the second winch: 10 t - lifting speed: 6 m/min.

Winch with disc brake

Presentation

This winch is used to lift up derricks.

Technical characteristics

The capacity on the last layer is 10 tons and the lifting speed is 10 m/min. The wire rope capacity is 500 meters with diameter of 32 mm. It is equipped with a STROMAG emergency disc brake and an emergency pressure failure hydraulic clamp.
