TE 5000 kg - 10 m/min, low voltage control with frequency inverter
TE 5000 kg - 10 m/min, low voltage control with frequency inverter
Electric winch 5000 kg. Range of electric winches with a large winding capacity allowing them to address a wide range of uses. For lifting applications.
Use:
- Lifting applications
- Industry
- Building and public works
- High-rise building sites
- Load elevators
Comply with Machines directive 2006/42/EC and standard NF 14492-1.
- Rugged and reliable parts.
- Wall mounting possibility.
- 400 V - 50 Hz three-phase motor. IP 54 Protection . P = 11 kW.
- Low voltage control protects the user from electrical risks. It makes it possible to operate a wide range of options: from limit switch to radio control, including a load limiter and a rope slack switch...
- Reliable electric and electronic components.
- Limit switch obligatory when lifting.

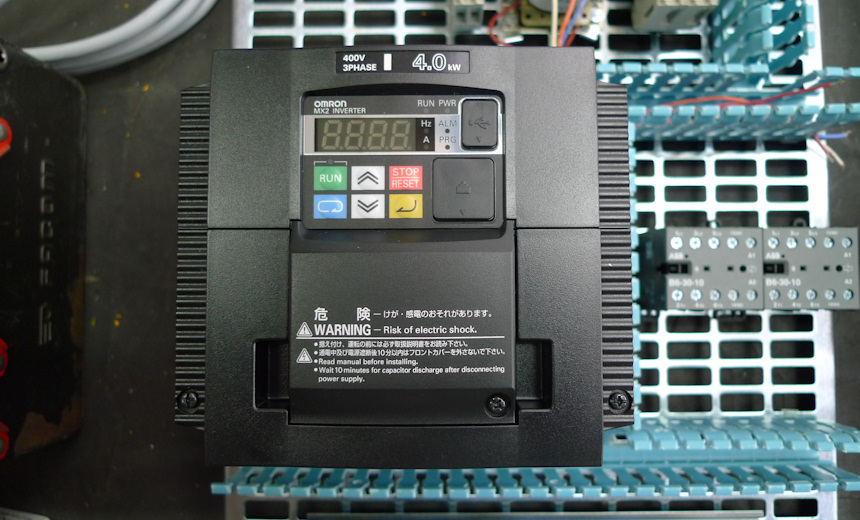

- Sealed electrical unit on the winch model with frequency inverter consisting on: frequency inverter, braking resistance, not disconnectable pendant control with potentiometer (3 m of cable).
- Adjustable speed from 10 % to 100 % with potentiometer.
- Acceleration and deceleration programming tables. According to use, speed programming.
- Reducers : bronze wheel and wormgear in oil bath. Secondary reducer for gears under cover.
- Standard drum length: 600 mm. Other length of drum possible for this model: 300 mm (optional).
- Numerous rope outlets.
- Options available: rope-press roller, grooved drum, multirope grooved drum, special paint, phases detector, lower chassis, chassis for telescopic arm loaders, tubular protection, timer, tarpauline cover...
Applications :

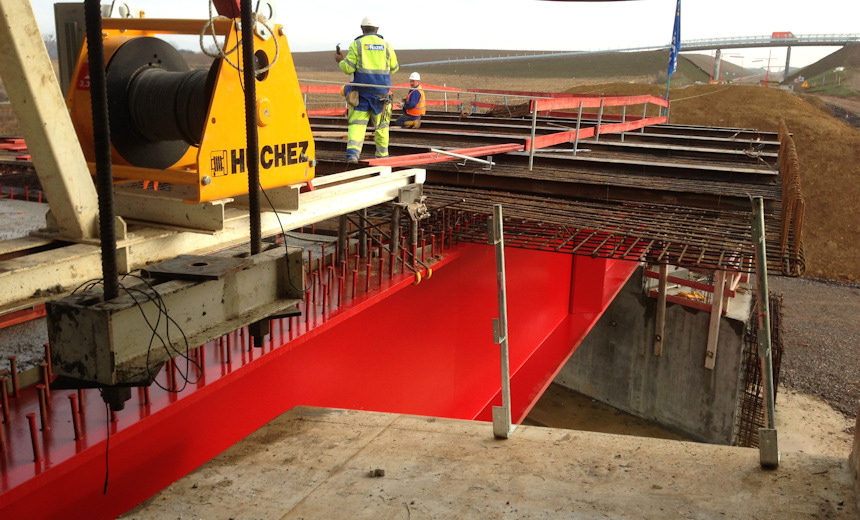

Load guiding.

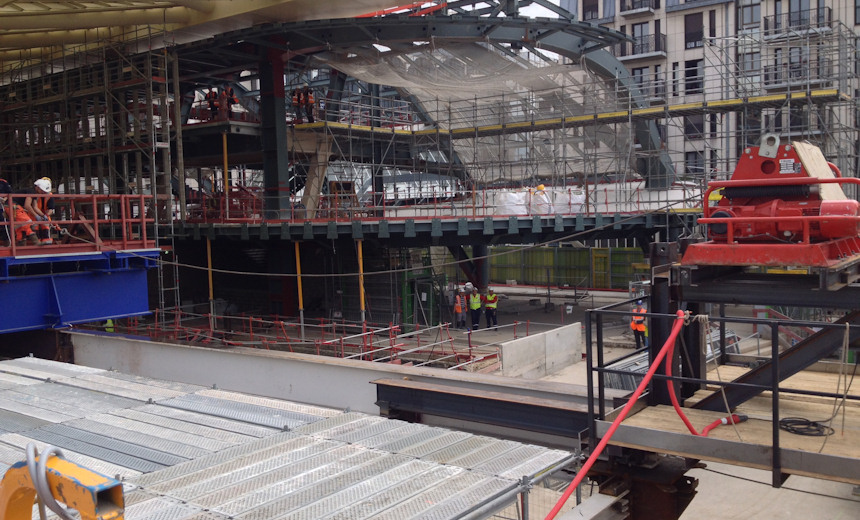

Installation of a formwork on a construction site.

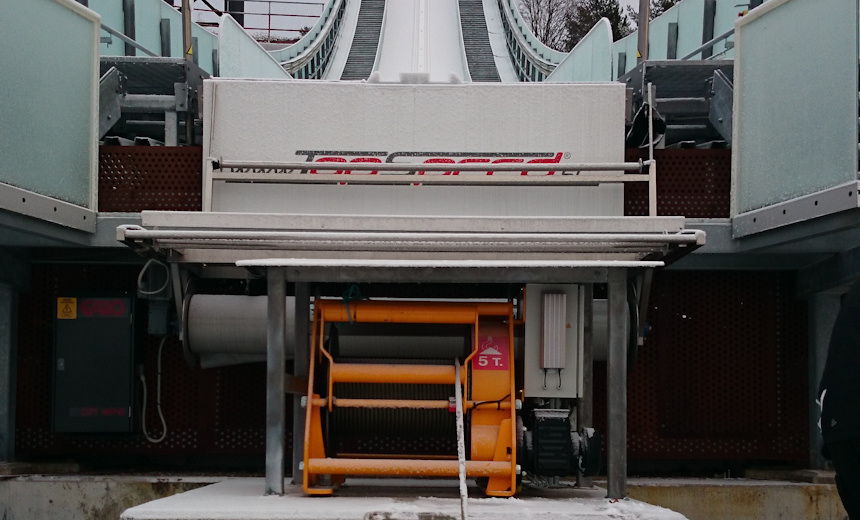

Pulling of weights to compress the snow on a ski jump.

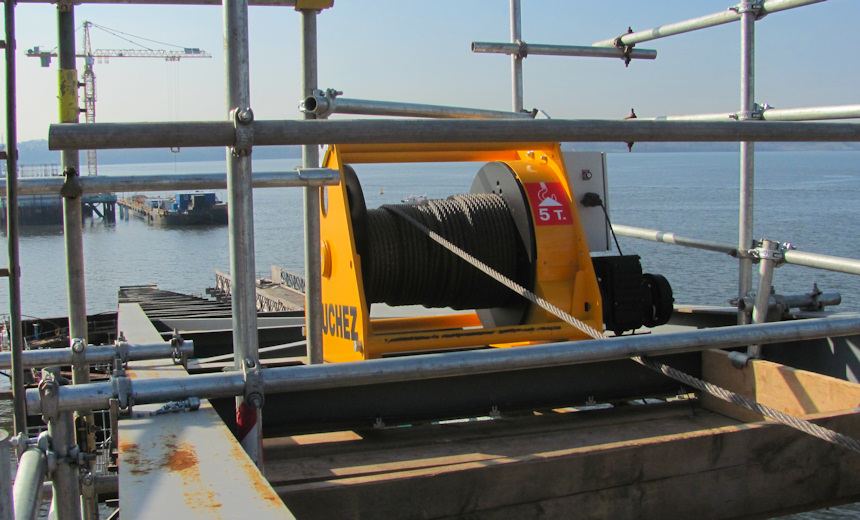

TE winch on site.

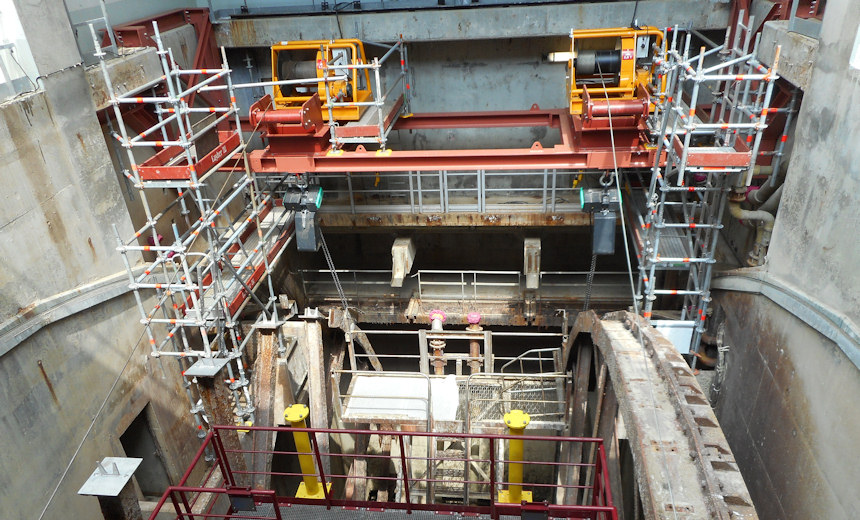

TE used to rotate wheels when filtering of water to cool reactors of a power plant.

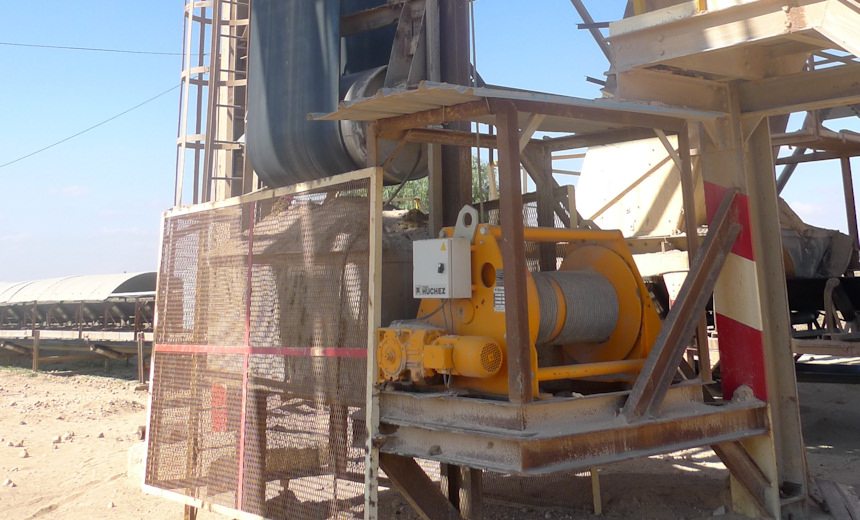

Conveyor belt tensioning in Mines and Qarries.
Technical characteristics TE 5000 kg - 10 m/min, low voltage control with frequency inverter
| Capacity 1st layer kg | 6575 |
| Capacity top layer kg | 5000 |
| Nb of layers | 4 |
| Wire rope cap. 1st layer m | 33 |
| Max. rope capacity m | 160 |
| Wire rope Ø mm | 18 |
| Adjustable speed 1st layer m/min | 0,7-7,5 |
| Adjustable speed top layer m/min | 1-10 |
| FEM | 2m |
| Motor kW | 11 |
| Power | 3Ph-400/690V |
| Weight (without wire rope) kg | 815 |
OPTIONS
This device stops the winch in the event of an overload without the breakag of the kinematic chain.
Compulsory when lifting loads over 1000 kg (Directive 2006/42/EC) in order to avoid rope breakage, structure deformation and accidents due to problems caused by overloading.
Clock-type limit switch specially designed by HUCHEZ with two positions.
This system is easy to adjust and guarantees safety by preventing upper and lower overruns.
Limit switch with 2, 4, 6 or 8 possible positions. IP 65. Coder option also proposed.
This option facilitates correct winding of the first rope layer. It is essential for a two-way system.
This device enables manual emergency operation. The releasable drum is required to unwind the rope manually.
Combined with a brake release lever, it allows the load to be lowered or positioned with precision manually.
It enables the rope to be neatly wound on the the drum. This is the essential complement to the grooved drum used for a single winding layer or if the rope is not constant ly taut (empty winding through traction).
Not advisable if the rope is wound on several layers.
Mandatory with a back and forth system.
This automatically stops the winch from unwinding when the rope is not taut, for example during lowering when an obstacle is blocking the load or in tension.
Allows you to lift a load using several ropes, lift several loads or make a two-way system.
For lifting or pulling a load with different fixing positions.
Widely used for thetre applications.
Allows several layers to be wound with two ropes.
Fastened to the ground to allow easier installation and handling.
The bottom frame allows easy handling thanks to two holes dedicated to the forks of these loaders.
Specially designed for construction sites and public works. The ideal complement for the lower chassis.
SIL3/PLe safety level. Range of 400 m in open areas.
Frequency 433 MHz. IP 65. Lithium-ion battery.
Possible options: information returned on screen, frequency 2.4 GHz. Available in proportional adjustable speed drive version...
SIL3/PLe safety level. Range of 400 m in open areas.
IP 66. Lithium-ion battery.
Proportional buttons for adjustable speed drive management and a display for information.
Custom made. Consult us.
Certified type C5M: for marine/offshore use.
Type C4: for use on rugged environment.
Consult us.
Avoids reversal between the up and down directions when connecting the winch. This option is standard with the work site option.
Engine brake, external electrical unit, cam type limit switch.
