659 winch, capacity 5000 kg
659 winch, capacity 5000 kg
Pulling crab winch, gear type 5000 kg.
Use:
- Pulling/Hauling operations only
- Anchorage of barges for river sailing
- Anchorage and movement of barges, boats...
- Doors manoeuvring
- Pulling work requiring long lengths of rope
- Pulling/hauling of vehicles, wagons, vessels...
- Steel chassis and drum.
- Rugged and tested mechanical construction.
- Straight cut gearing, high tensile steel.
- Manual band brake (lever or wheel).
- Two speeds.
- Large rope capacities.
- Standard crank handle.
- Options: manoeuvring hand wheel and marine painting, consult us.
Applications :

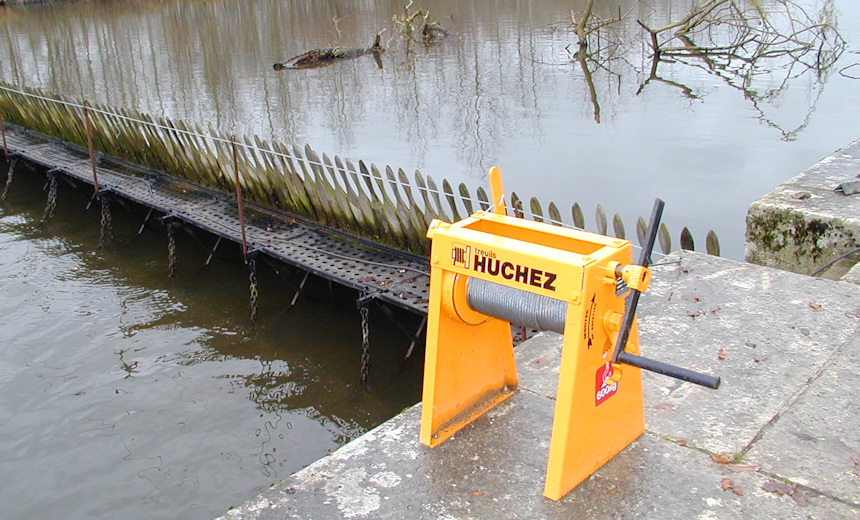

Pulling of barges on a tourist site.
Pulling of grids on dam.

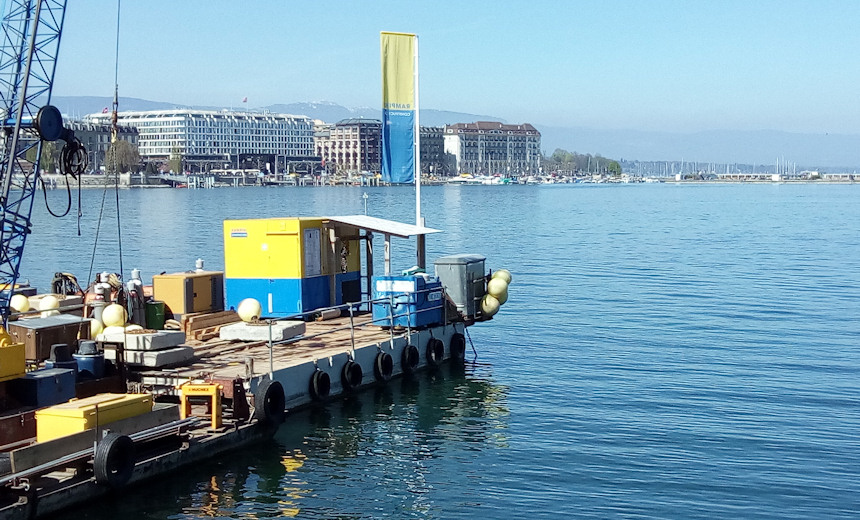

Setting of a floating antipollution boom.

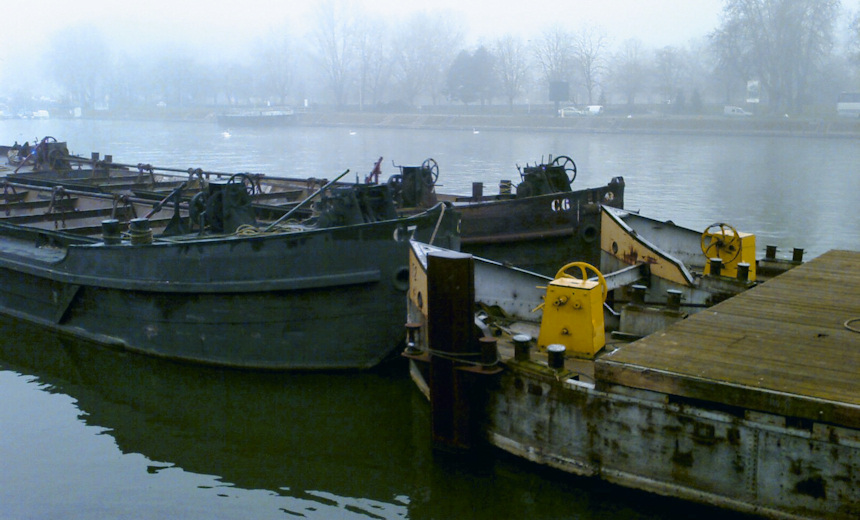

Anchorage of barges for river sailing.
Technical characteristics 659 winch, capacity 5000 kg
| Capacity 1st layer kg | 7500 |
| Capacity top layer kg | 5000 |
| Nb of layers | 5 |
| Wire rope cap. 1st layer m | 33 |
| Max. rope capacity m | 223 |
| Travel/crank revolution mm | 44 |
| Wire rope Ø mm | 16 |
| Weight (without wire rope) kg | 360 |
OPTIONS
Manoeuvring hand wheel, 659 winch, capacity 3000 kg
VOLANT6593000
Specific painting
Certified type C5M: for marine/offshore use.
Type C4: for use on rugged environment.
HUCHEZ’s advice
Robust due to rugged and tested mechanical construction, large rope capacities.
