TIREX 300 kg - standard model

TIREX 300 kg - standard model

Hand spurgear winch 300 kg, standard model (with zinc-plated steel mounting plate).

Use:

• Lifting or pulling/hauling operations
• Indoor - Outdoor
• Operating temperature between -10°C and +50°C
• Flat position
• Lifting doors
• Opening of traps
• On trailers, masts...

Comply with Machines Directive 2006/42/EC. Developped and manufactured in accordance with standard NF E N 13157.

• A new generation, compact winch taking advantage of the qualities of composite materials and aluminium, especially their anti-corrosion properties.
• High force/compact and density ratio.
• Many possibilities of wire rope exit (over 250°).
• Ergonomically and comfortably shaped crank grip.
• Removable crank.
• Stainless steel spring and pawls.
• Automatic brake.
• Zinc-plated steel mounting plate.
• Disengageable drum, no load only, associated with a failsafe system in the rope wind direction (patented).
• Planetary reducer in a sealed casing.
• Gear system with satellite pinions offering excellent mechanical balance and reducing the effort required on the crank.

Applications :

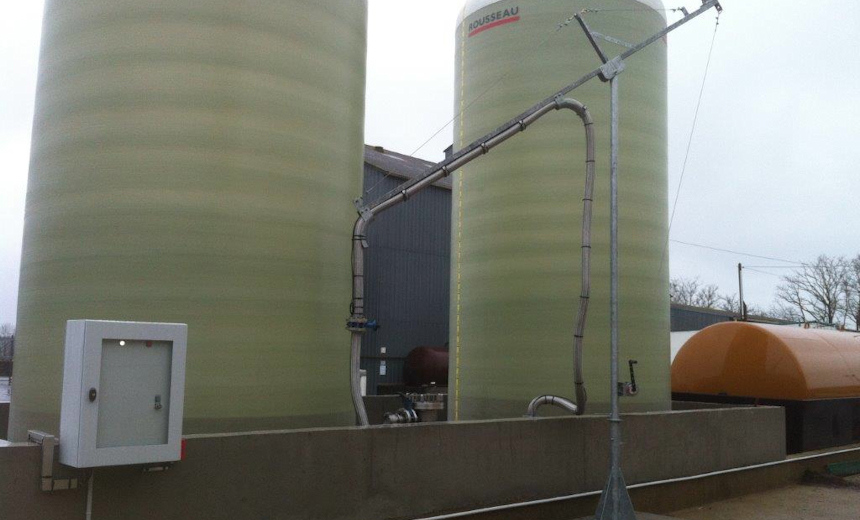

TIREX installed on a loading arm.

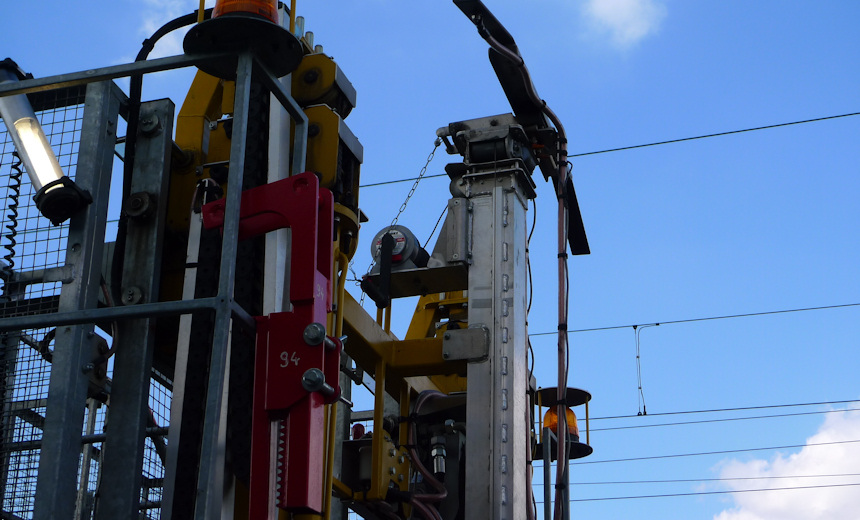

Installation of a grounding mast for a SNCF cradle.



TIREX installed on a anchor bracket. Lifting material.

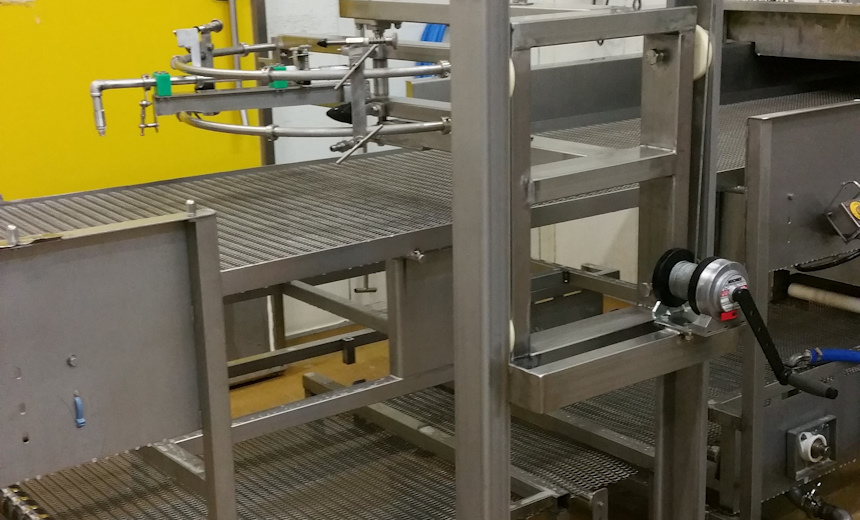

TIREX used in the food industry on a lifting table.

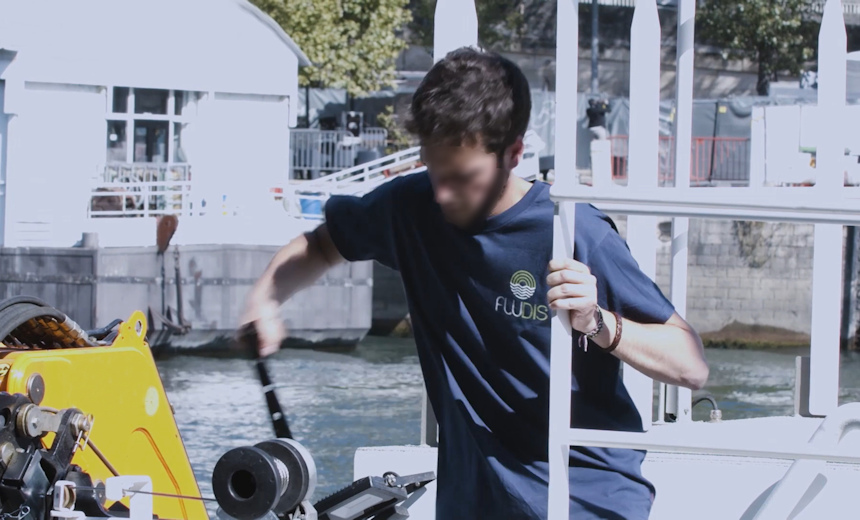

TIREX used to deploy the gangways of a boat on the Seine.

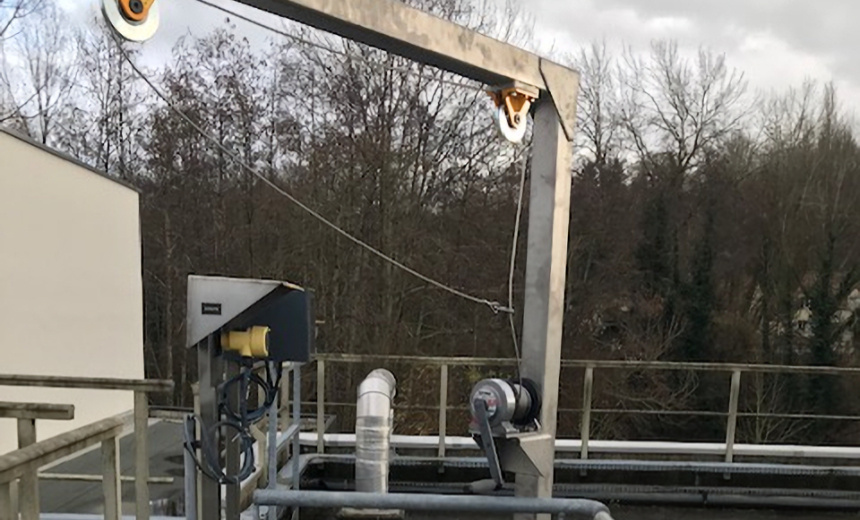

TIREX installed on a jibcrane to raise probes in a water treatment plant.

Technical characteristics TIREX 300 kg - standard model
