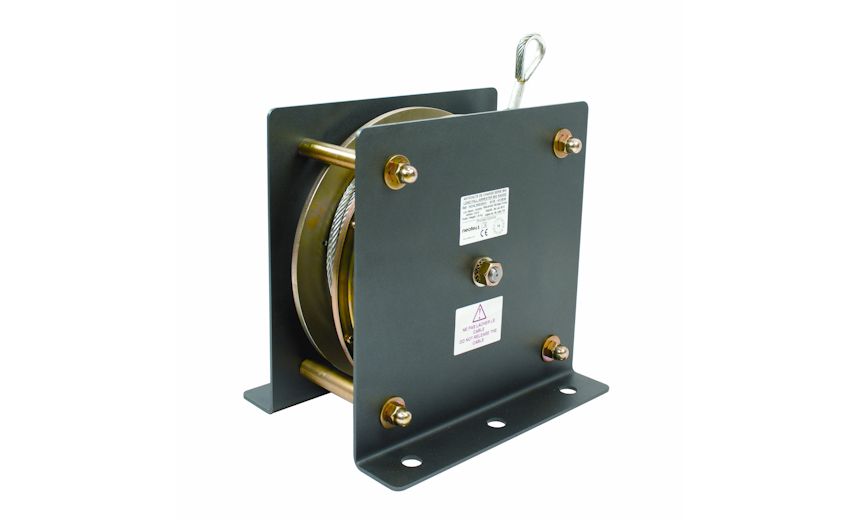

Anti-fall device for loads CHL-BIG 2000 kg, rope length 20 m

Anti-fall device for loads CHL-BIG 2000 kg, rope length 20 m

These load fall arresters ensure safety function in case of failure of the main loads holding or transporting systems.

Use:

  • Numerous fields of application (industry, public works, theater, gym arena, amusement park...).

Download leaflet Receive a quote
  • Anti-corrosion treated steel cover
  • Galvanized steel bolts.
  • Integrated energy absorber reducing the effort on the structure.
  • Easy to install.
  • Vertical fixation in the axis of the load.
  • The fixation points must be tested and the structure must have a resistance equal to 6 times the static load.
  • Locking system by double steel pawls.
  • Standard unwinding speed: 20 m/min (setting in factory on request).
  • Short distance braking.
  • Different capacities, cable lengths, speeds and number of cycles greater than 50 per day, please contact us.
  • Upper and lower possibility of anchoring.
  • Can be used with diverting pulley

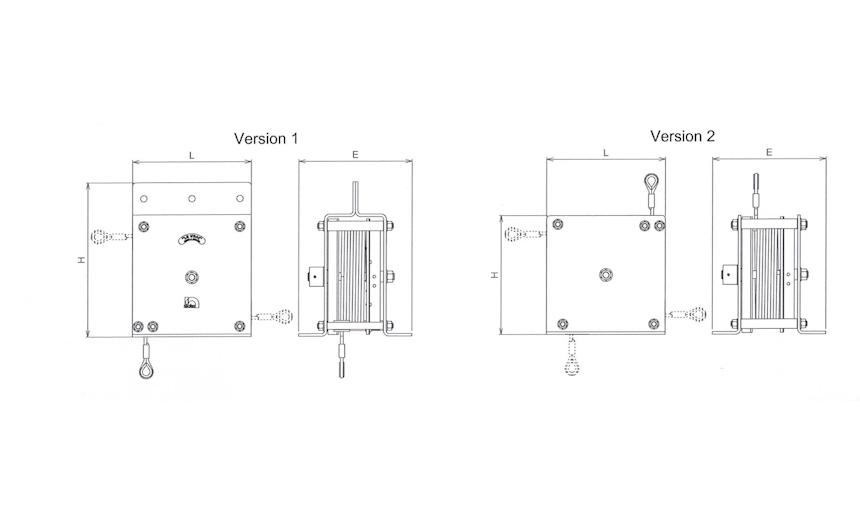

  • Two available versions: bottom or lateral wire rope exit (version 1) bottom, top or lateral wire rope exit (version 2).

Technical characteristics Anti-fall device for loads CHL-BIG 2000 kg, rope length 20 m

Maximum load kg2000
Rope length m20
Weight kg260

HUCHEZ’s advice

This equipment must be checked before and after each use by en authorized person. Maintenance by the manufacturer or by a center approved by him, must be carried out: at least once a year (depending on frequency of use) and systematically after a fall or when in doubt about the safety of the device.
