Aluminium telescopic tripode CT4, 500 kg - Height under tripod head 4 m

Aluminium telescopic tripode CT4, 500 kg - Height under tripod head 4 m

Use:

• Underground networks.
• Roads.
• Useful when working on a site in particular for underground work when there is no upper anchorage point.

• Aluminium structure: lightweight, solid and highly resistant to corrosion.
• Compact when folded.
• Telescopic.
• Easy to transport.
• Articulated with 2 positions depending on the model: spade tip (soft ground) or flat shoe (hard ground).
• Lags are held together with 3 independent textile straps with self-locking buckle.
• Head: high strengh cast aluminium.
• Multiple anchor points for fitting a pulley, a second hook for a tackle...
• Fitted with a fixation plate on a double leg providing the means for fitting manual or electric winches and can thus lift loads of 250, 350 and 500 kg depending on winch.

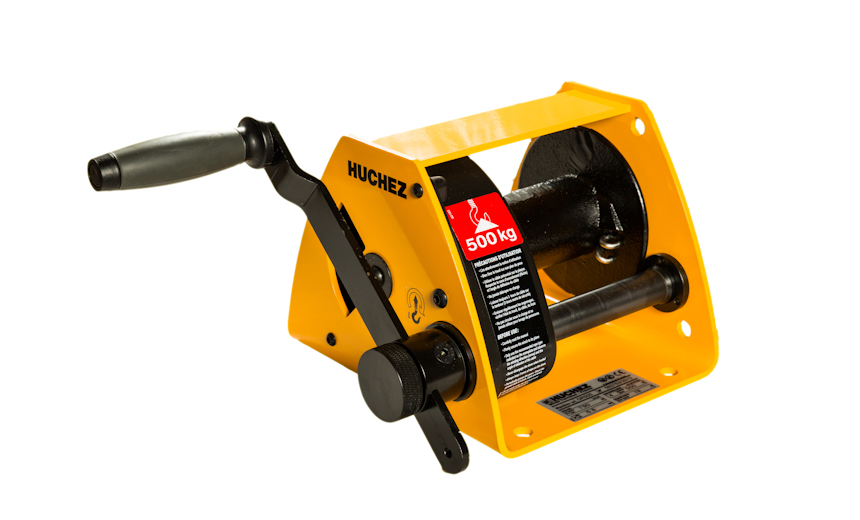

• Options: manual winch (MANIBOX GR 500 kg - 18 m of wire rope) or electric winch(TRBoxter 250 kg - 56 m of wire rope, TRBoxter 350 kg - 56 m of wire rope or TRBoxter 500 kg - 42 m of wire rope).

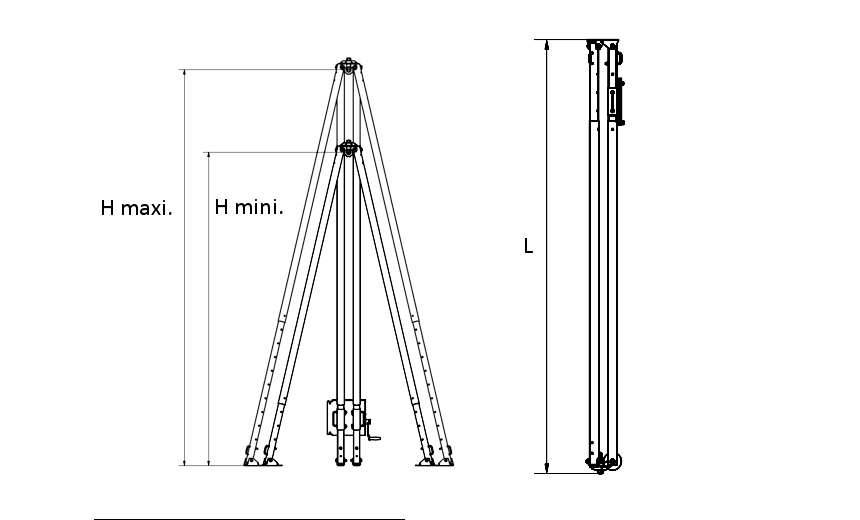

Technical characteristics Aluminium telescopic tripode CT4, 500 kg - Height under tripod head 4 m
