Electric winch MINIFOR 300 kg, single phase power supply, 13 m/min

Electric winch MINIFOR 300 kg, single phase power supply, 13 m/min

Use:

  • Building Public Construction professionals, craftsmen.
  • Regular use with high lifting heights.
  • To be used indoor or with a weather protection.

Download leaflet Receive a quoteDownload user manual
  • "Free cable" operating principle: a self-tightening system ensures that the cable adheres perfectly to the drive pulley.
  • High quality product.
  • Compact and light, it is easy to set up and transport.
  • Unlimited wire rope length and therefore unlimited lifting height.
  • Power supply 230 V single phase. - 50 Hz.
  • Operated by a control pendant (2.5m cable, Up/Down/Emergency Stop), which is supplied as standard. Power supply cable length 1 metre, with CEE Form connector.
  • Upper and lower limit switch.
  • Hook with safety tab included.
  • Options: reeving kit, reel, radio control, metal transport box, Ø 6,5 mm cable.

Technical characteristics Electric winch MINIFOR 300 kg, single phase power supply, 13 m/min

Capacity top layer kg300
Wire rope Ø mm6,5
Fixed speed top layer m/min13
Motor kW1,1
Power1Ph-230V
Weight (without wire rope) kg32

OPTIONS

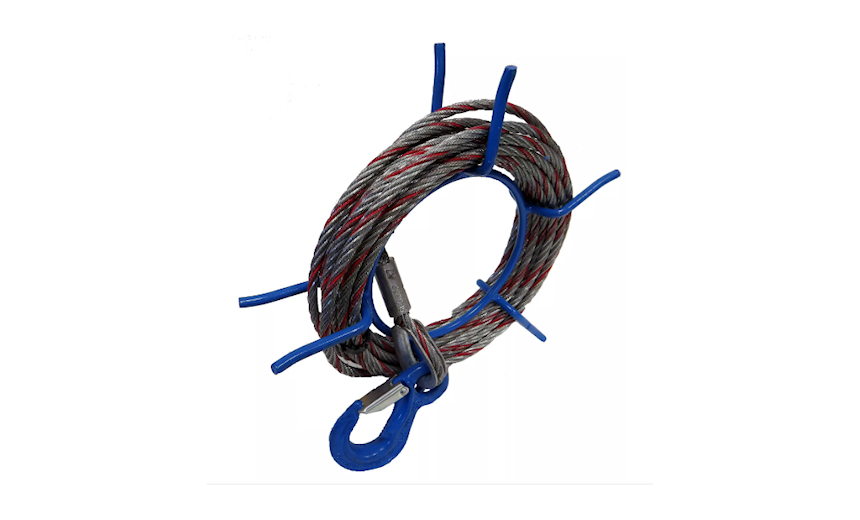

Wire rope kit for MINIFOR, Ø 6 mm, 10 m
CB6MINIFOR10M

Wire rope kit for MINIFOR, Ø 6 mm, 10 m

Wire rope kit for MINIFOR, Ø 6 mm, 20 m
CB6MINIFOR20M

Wire rope kit for MINIFOR, Ø 6 mm, 20 m.

Wire rope kit for MINIFOR, Ø 6 mm, 25 m
CB6MINIFOR25M

Wire rope kit for MINIFOR, Ø 6 mm, 25 m.

Wire rope kit for MINIFOR, Ø 6 mm, 30 m
CB6MINIFOR30M

Wire rope kit for MINIFOR, Ø 6 mm, 30 m.

Wire rope kit for MINIFOR, Ø 6 mm, 40 m
CB6MINIFOR40M

Wire rope kit for MINIFOR, Ø 6 mm, 40 m.

Wire rope kit for MINIFOR, Ø 6 mm, 50 m
CB6MINIFOR50M

Wire rope kit for MINIFOR, Ø 6 mm, 50 m

Wire rope kit for MINIFOR, Ø 6 mm, 60 m
CB6MINIFOR60M

Wire rope kit for MINIFOR, Ø 6 mm, 60 m

Wire rope kit for MINIFOR, Ø 6 mm, 80 m
CB6MINIFOR80M

Wire rope kit for MINIFOR, Ø 6 mm, 80 m

Wire rope kit for MINIFOR, Ø 6 mm, 100 m
CB6MINIFOR100M

Wire rope kit for MINIFOR, Ø 6 mm, 100 m

HUCHEZ’s advice

Strong point: Light and compact, it is easy to transport.
