24 V electric winches for 4x4, trailers, utilities. Capacity: 5670 kg. Model with wire rope.
Use:
- Only for pulling/hauling operations. For any maneuver on an inclined plane, the effort to be developed must be increased.

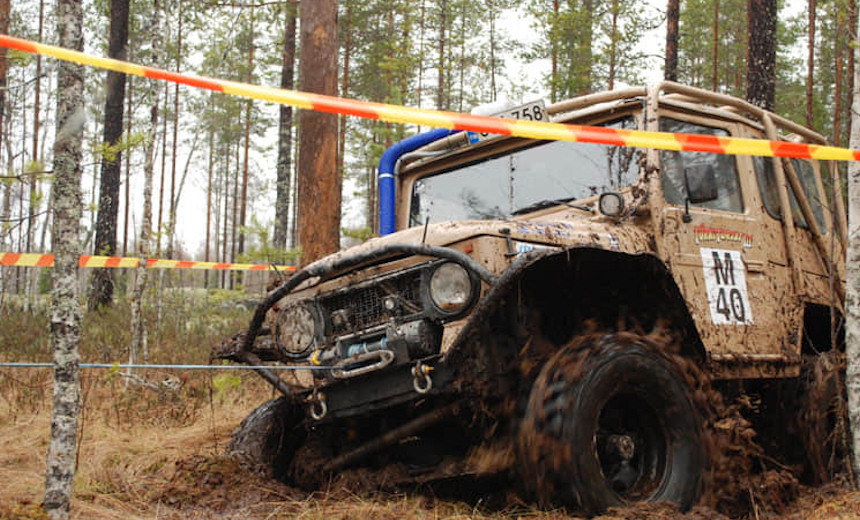

- Medium 4x4
- Heavy Equipment trailer to transport shovels, bulldozers…
- Vehicle recovery : large trailers or occasionnal breakdown assistance
- Utilities...
- IP67 model.
- 24 V motor for use in all weathers.
- Stainless steel manual disengaging handle.
- Patented 3 stage planetray reducer.
- Stainless steel external screws.
- Anti-heating brake to prevent wear in the wire rope in case of prolonged use.
- Control relay in waterproof box.
- High efficiency transmission (9 m/min winding).
- 3.9 m long high resistance rubber pendant control.
- Over-voltage protection to safe use of the winch.
- Model with wire rope. Model with textile rope exists.
- Nylon safety strop for safer handling of the wire rope and hook.
- Roller fairlead.
- Supplied with mouting plate, wire rope and hook.
Applications :
Pulling only. Small 4x4.

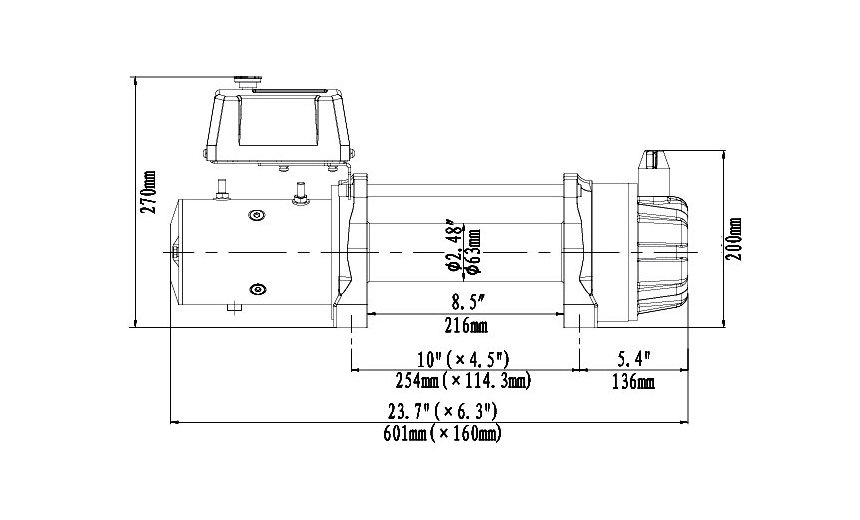

Technical characteristics 24 V Electric winches for 4x4 EB12500, capacity 5670 kg, wire rope
Capacity 1st layer kg | 5670 |
Capacity top layer kg | 3088 |
Motor kW | 4.8 |
Rope length supplied with the winch m | 25.5 |
Rope Ø supplied with the winch mm | 10.2 |
Speed on 1st layer at nominal load m/min | 1.6 |
Speed on 1st layer without load m/min | 10 |
Amps 1st layer at nominal load | 200 |
Amps 1st layer without load | 60 |
Weight kg | 42.9 |
OPTIONS
Hauling radio control for electric vehicle winches
_RCH_RUNVA
CAUTION! FORBIDDEN WHEN LIFTING
Hauling only. Range of 100 m in open areas. Frequency 2.4 GHz. IP 65.
Possible option : protective cover. Available as a long distance version (500 m in open areas).
HUCHEZ’s advice
Electric winches for vehicle. Pulling only. Nylon safety strap for safer handling of the rope and hook.
