24 V electric winches for 4x4 EB9500, capacity 4309 kg, wire rope

24 V electric winches for 4x4 EB9500, capacity 4309 kg, wire rope

24 V electric winches for 4x4, trailers, utilities. Capacity: 4309 kg. Model with wire rope.

Use:

• Only for pulling/hauling operations. For any maneuver on an inclined plane, the effort to be developed must be increased.
• Medium 4x4
• Heavy Equipment trailer to transport shovels, bulldozers…
• Vehicle recovery : large trailers or occasionnal breakdown assistance
• Utilities...

• IP67 model.
• 24 V motor for use in all weathers.
• Stainless steel manual disengaging handle.
• Patented 3 stage planetray reducer.
• Stainless steel external screws.
• Anti-heating brake to prevent wear in the wire rope in case of prolonged use.
• Control relay in waterproof box.
• High efficiency transmission (9 m/min winding).
• 3.9 m long high resistance rubber pendant control.
• Over-voltage protection to safe use of the winch.
• Model with textile rope. Model with wire rope exists.
• Nylon safety strop for safer handling of the wire rope and hook.
• Roller fairlead.
• Supplied with mouting plate, wire rope and hook.

Applications :

Pulling only. Small 4x4.

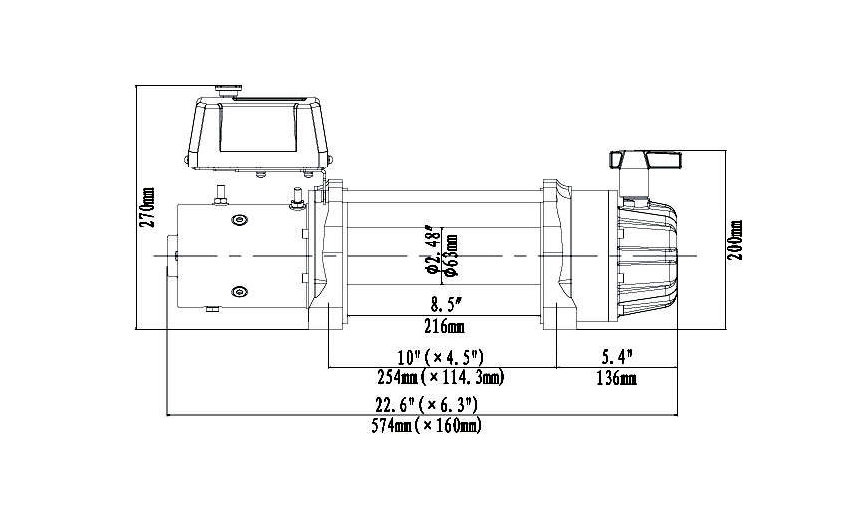

Technical characteristics 24 V electric winches for 4x4 EB9500, capacity 4309 kg, wire rope
