Gantry crane 919 - capacity 5000 kg, height under beam 3 m, range 3 m

Gantry crane 919 - capacity 5000 kg, height under beam 3 m, range 3 m

Use:

• Maintenance workshops, trucks and automobile workshops...
• All works.
• Interior.

• Very solid mechanically welded construction.
• Easy to use.
• Composed of square pipe columns and one IPE profile roller rail.
• Polyurethane finish (yellow RAL 1028).
• Fitted with white polyamide pivoting wheels or banded polyurethane wheels, depending on models.
• Movable under load over smooth, clean floors.
• Push displacement only.
• Maximum lifting speed = 16 m/min.
• Range: 3 m. From 3 to 5 m in standard. Other ranges on request.
• Height under beam: 3 m. Up to maxi.5 m in standard. Other dimensions: consult us.
• Supplied disassembled into 3 parts. Assembly with galvanized fittings.
• Other possible options: wheels with polyurethane tires, locking wheels, non-rotating wheels, feeding line,lockable main switch, galvanized finish, outdoor use...

Applications :

Load lifting in a workshop.

Load lifting in a workshop.

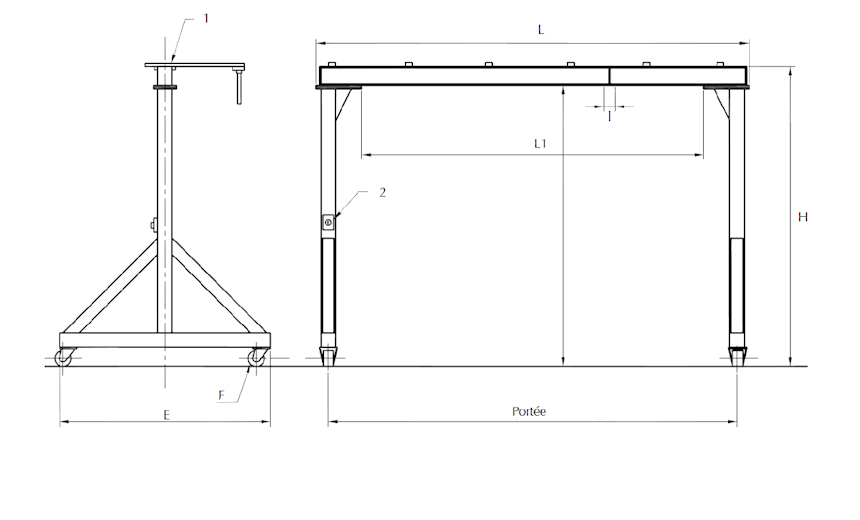

Technical characteristics Gantry crane 919 - capacity 5000 kg, height under beam 3 m, range 3 m
